The low noise high head horizontal single-stage end-suction close-coupled pump features an integrated direct-coupled structure of motor and pump body with no coupling drive, which delivers a compact and simplified structure, easy installation and low operating noise. Optimized with proven hydraulic models, the pump achieves high energy efficiency, stable operation and a wide coverage of head and flow range. Adopting premium mechanical seal configuration, it effectively eliminates medium leakage. Widely applied in general working conditions such as building water supply and drainage, central air conditioning water circulation, industrial process water supply and municipal heating and ventilation, the pump acts as a core fluid conveying equipment with strong versatility, easy maintenance and outstanding cost performance.
Low Noise High Head Horizontal Single Stage End Suction Close Coupled Pump
-
Capacity （ m³/h）
8~1600 m³/h
-
Head（m）
5~150
-
Temperature Range（°C）
-15~+120
-
Max. Working Pressure（MPa）
2.5
- Description
- Technical Specification
The horizontal single-stage end-suction close-coupled pump is a foot-mounted, single-stage, single-suction, overhung centrifugal pump, used to handle clean water and other liquids free of solid particles whose physical and chemical properties are similar to those of water.
Applicable Standards: GB/T 5657, ISO 2858, DIN 24960.
Configuration: Horizontal, single-stage, radially split volute casing, foot-mounted, axial end suction and radial top discharge, with suction and discharge flanges of the same pressure rating. The pump has no bearings of its own and is directly coupled to the motor.
Series Design: 6 shaft-seal series cover 47 pump models, offering excellent parts commonality and interchangeability.

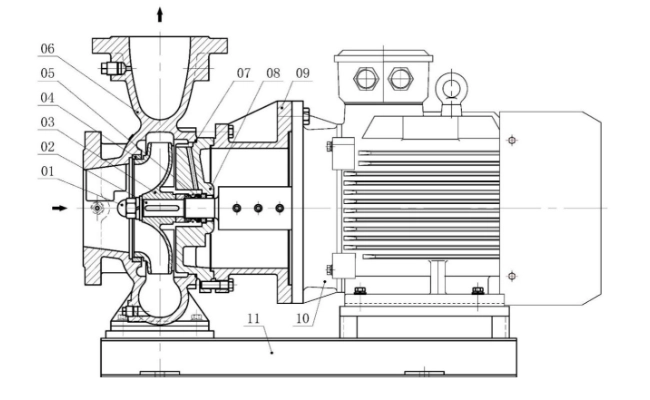

Product Structure Drawing:
| 01. Impeller Nut | 02. Pump Shaft | 03. Impeller | 04. Wear Ring |
| 05. Mechanical Seal | 06. Pump Casing | 07. Gasket | 08. Pump Cover |
| 09. Connecting Bracket | 10. Motor | 11. Common Baseplate |
Product Features:
- High efficiency and reliability: A high-efficiency hydraulic design delivers high pump efficiency, good reliability and a wide high-efficiency range.
- Stable performance: Impellers of the appropriate diameter are matched to the actual operating parameters.
- Wide choice of seals: Designed in accordance with DIN 24960 and API 682, the pump can be fitted with gland packing, mechanical seals rated for 1.0 / 1.6 / 2.5 MPa, and the appropriate flush plans.
- Cost-effective: Compact construction, small installation area, low price and easy maintenance.
Performance Parameters:
- Suction / Discharge Size: Suction DN50 – DN350, discharge DN32 – DN300
- Performance Range: 8 – 1,600 m³/h, head 5 – 150 m
- Temperature Range: -15 to +120 °C
- Max. Working Pressure: 2.5 MPa

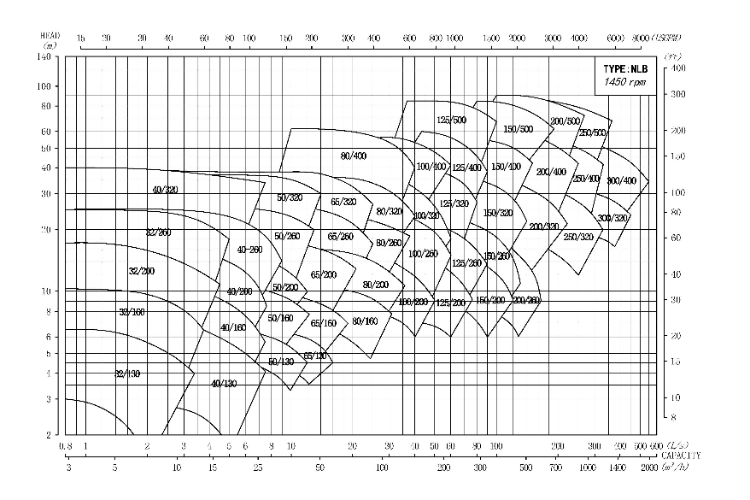

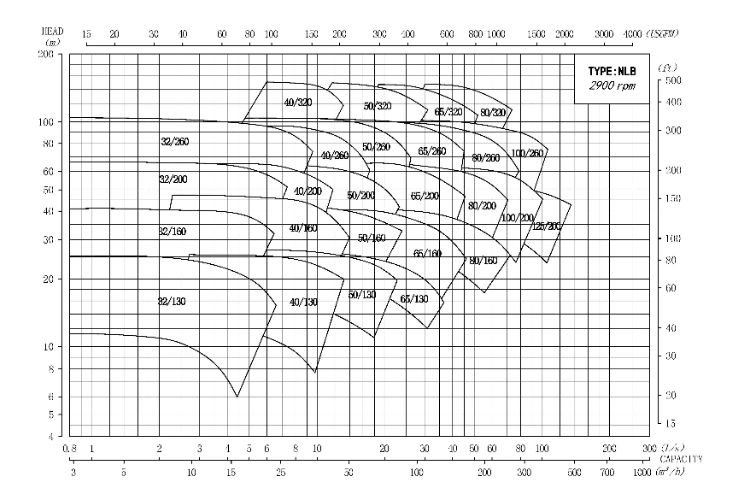

Performance Coverage Chart:
Applications:
Suitable for metallurgy and mining, petrochemicals, water conservancy and municipal engineering, power and environmental protection, coal and firefighting, agricultural irrigation, building pressure boosting, firefighting pressure boosting, air-conditioning circulation and landscape sprinkler irrigation, for handling clean water or other liquids free of solid particles whose physical and chemical properties are similar to those of water.
Performance Parameters:
| Performance | Parameter Range |
| Suction / Discharge Size | Suction DN50~DN350, discharge DN32~DN300 |
| Capacity | 8 ~ 1,600 m³/h |
| Head | 5~ 150 m |
| Temperature Range | -15~+120 °C |
| Max. Working Pressure | 2.5 MPa |
