Vertical multistage pump for industrial liquid transfer

The vertical multistage pump for industrial liquid transfer is a high-efficiency, stable and energy-saving fluid transfer equipment widely used in industrial fields. Adopting a vertical multistage centrifugal structure, the pump features stable operation, high head, low noise and long service life. It is suitable for conveying clean water, low-viscosity liquids and mild acid-base industrial media. this pump can achieve continuous and stable industrial liquid transfer and pressurization, fully meeting the requirements of continuous and high-precision fluid transportation for industrial production, serving as an essential supporting device for industrial fluid supply and medium transfer.

Head（m）

8~200
Capacity（m³/h）

5~240
Temperature Range（°C）

-15~+120
Max. Working Pressure（MPa）

2.5

Inquire Now

Share:

Description
Technical Specification

The vertical multistage pump for industrial liquid transfer is a foot-mounted, multistage, single-suction vertical centrifugal pump. Its suction and discharge ports are of the same diameter and lie on the same centerline, so that the pump is installed in the pipeline like a valve.

Applicable Standards: GB/T 5657.

Configuration: Vertical, segmental-type multistage centrifugal pump, foot-mounted, horizontal suction and discharge, with suction and discharge flanges of the same pressure rating.

Energy-saving and efficient: The efficiency of a single-stage impeller with the head of a multistage pump.

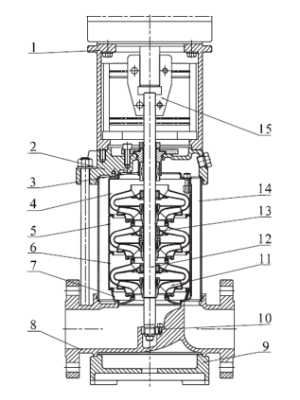

Product Structure Drawing:

Vertical multistage pump for boiler feed liquid transfer

1. Motor Bracket	9. Base
2. Pump Head	10. Lower Bearing
3. Mechanical Seal	11. Impeller
4. Discharge Diffuser	12. Pump Shaft
5. Supporting Diffuser	13. Intermediate Shaft Sleeve
6. Diffuser	14. Pressure Tube
7. Flow Guide	15. Coupling
8. Suction & Discharge Casing

Product Features:

High efficiency and reliability:A high-efficiency hydraulic design delivers high pump efficiency and good reliability.
Stable performance:The number of impellers is matched to the required head.
Cost-effective:Compact construction, small installation area, low price and easy maintenance.

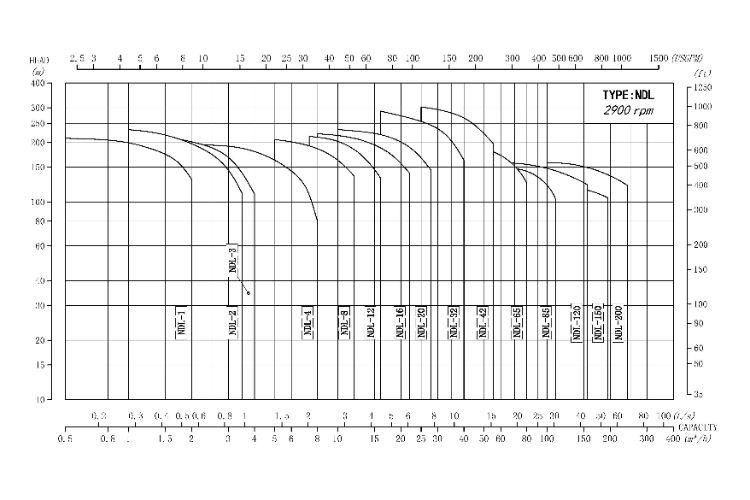

Performance Coverage Chart:

Applications:

The product is widely used in water supply, waterworks filtration and transfer, zoned water distribution, main-line pressure boosting, high-rise building pressure boosting, industrial pressure boosting, process water systems, cleaning systems, high-pressure washing systems, firefighting systems, industrial liquid transfer, cooling and air-conditioning systems, boiler feed and condensate systems, machine tool applications, acid and alkali handling, ultrafiltration systems, reverse osmosis systems, distillation systems, separators, swimming pools and farmland irrigation.

Performance Parameters:

Performance	Parameter Range
Suction / Discharge Size	DN25 ~ DN150
Capacity	5 ~ 240 m³/h
Head	8 ~ 200 m
Temperature Range	-15 ~ +120 °C
Working Pressure	2.5 MPa

Tags:

Vertical multistage pump for boiler feed liquid transfer Vertical multistage pump for industrial cooling liquid transfer Vertical multistage pump for water treatment liquid transfer

FAQ

If your questions are not answered in the below list, please contact us.

info@anhuigoodpump.com

Q

How do I select the right pump model?

A

Please provide medium, viscosity, temperature, required flow, discharge pressure, suction condition and installation space. Our engineers will recommend a rotary pump, centrifugal pump, sewage lifting unit or complete pump set within 24 hours.
Q

Can the pump handle high-viscosity or solids-laden fluids?

A

Yes. Twin-rotor lobe pumps are designed for high-viscosity, gas-liquid mixed and slightly solids-laden media. For abrasive slurry, we recommend a dedicated slurry centrifugal pump with wear-resistant materials.
Q

Do you support OEM / ODM and custom materials?

A

We provide OEM and ODM services, including customized rotor geometry, sealing systems, skid layout, control panels, and wetted parts in cast iron, stainless steel, duplex steel or other alloys.
Q

What is the warranty and after-sales response?

A

Standard warranty is 12 months after handover following 168 hours of trial operation. Technical staff can be dispatched for installation guidance, and quality issues are handled within 0–36 hours after notification.
