The OH1 chemical centrifugal pump follows API 610 standard and is engineered for reliable transfer of corrosive liquids in chemical processes. This horizontal overhung end-suction pump supports a variety of corrosion-resistant material configurations to cope with acidic, alkaline and other aggressive media. It delivers stable performance under continuous operation, featuring flexible mechanical seal options to minimize leakage risk when handling corrosive fluids. Widely adopted in chlor-alkali, fine chemical and petrochemical plants, it provides robust fluid handling solutions for harsh corrosive working conditions.
OH1 chemical centrifugal pump for corrosive liquid transfer
-
Discharge Size
DN25 – DN400
-
Max. capacity（m³/h）
2600
-
Temperature Range（ °C）
-80～+170
-
Max. Working Pressure（MPa）
2.5
- Description
- Technical Specification
The OH1 chemical centrifugal pump for corrosive liquid transfer is a foot-mounted, single-stage, single-suction, overhung heavy-duty centrifugal pump. As a core fluid-transfer unit widely used in petrochemical and other industries, it offers the key advantages of a compact structure, easy maintenance and suitability for a wide range of operating conditions.
Applicable Standards: GB/T 3215, ISO 5199, ISO 13709 / API 610 (OH1), API 682.
Configuration: Horizontal, single-stage, radially split volute casing, foot-mounted, axial end suction and radial top discharge, with suction and discharge flanges of the same pressure rating.
Modular Design: Shaft, casing cover, wear rings (seal rings), mechanical seal, bearings and other core components are highly interchangeable.
Product Features:
- High efficiency and reliability:Optimized hydraulic design ensures smooth running and excellent cavitation (NPSH) performance.
- Wide adaptability:Closed impellers, semi-open impellers, inducers and fully steam-jacketed / heat-traced constructions are available to suit high-solids, low-NPSH and crystallizing media.
- Excellent sealing:Designed to API 682, allowing flexible selection of various mechanical seal arrangements.
- Intelligent monitoring:Tappings are provided for bearing temperature, oil-chamber temperature and bearing vibration measurement to support online condition monitoring.
- Superior durability:Wetted parts are fitted with replaceable wear rings; the hardness differential and running clearances are controlled to extend service life.

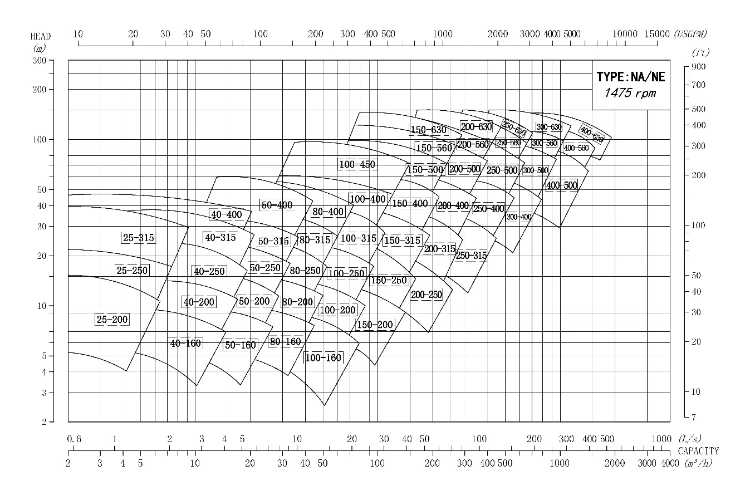

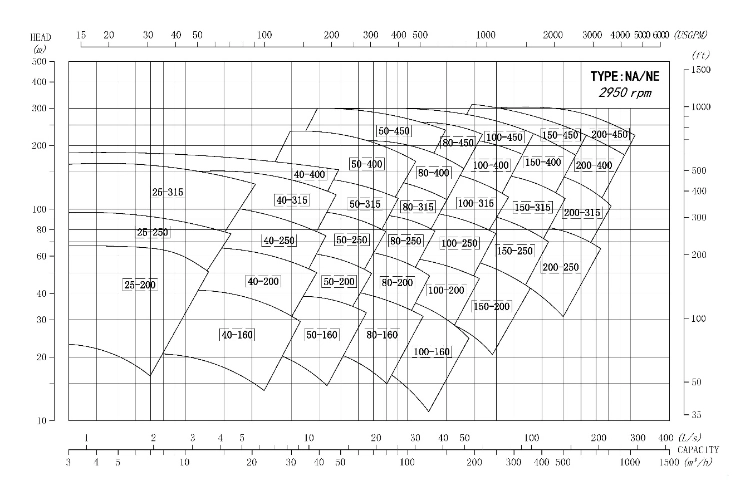

Performance Coverage Chart:
Applications:
The OH1 series meets the process requirements of a wide range of general and industrial applications. It is widely used in heavy-duty industrial processes such as petroleum refining, petrochemicals, coal chemicals, power plants, pulp and paper stock, pharmaceuticals, offshore platforms, oil transmission projects and environmental water treatment, handling clean (or moderately solids-laden), low-to-medium temperature, corrosive, abrasive, toxic, flammable and explosive industrial fluids.
Performance Parameters:
| Performance | Parameter Range |
| Discharge Size | DN25 – DN400 |
| Max. capacity | 2,600 m³/h |
| Max. head | 300 m |
| Temperature Range | -80 to +170 °C |
| Working Pressure | 2.5 MPa |
-
Q
How do I select the right pump model?
APlease provide medium, viscosity, temperature, required flow, discharge pressure, suction condition and installation space. Our engineers will recommend a rotary pump, centrifugal pump, sewage lifting unit or complete pump set within 24 hours. -
Q
Can the pump handle high-viscosity or solids-laden fluids?
AYes. Twin-rotor lobe pumps are designed for high-viscosity, gas-liquid mixed and slightly solids-laden media. For abrasive slurry, we recommend a dedicated slurry centrifugal pump with wear-resistant materials. -
Q
Do you support OEM / ODM and custom materials?
AWe provide OEM and ODM services, including customized rotor geometry, sealing systems, skid layout, control panels, and wetted parts in cast iron, stainless steel, duplex steel or other alloys. -
Q
What is the warranty and after-sales response?
AStandard warranty is 12 months after handover following 168 hours of trial operation. Technical staff can be dispatched for installation guidance, and quality issues are handled within 0–36 hours after notification.
